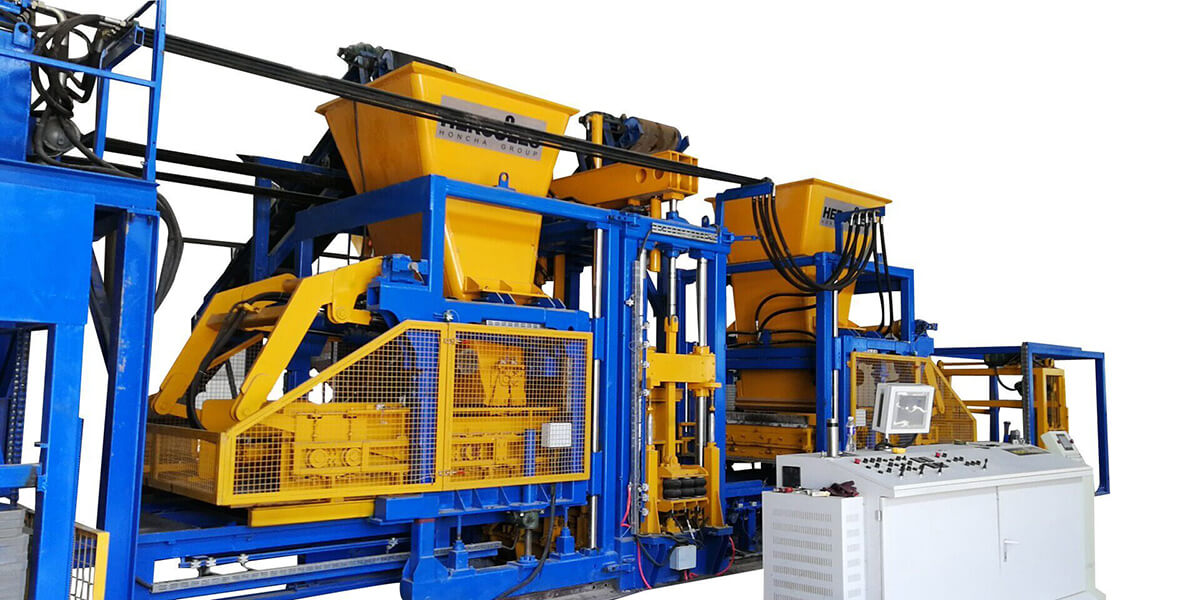

Hercules M block machine
Hercules is your best choice for
-Economic
-Durability
-High Productivity
-High Quality
with wide range of products such as concrete blocks, pavers, kerbs, retaining wall units, planters and etc.
——Core Technology——
1.Smarter Factory &Easier Management
* High Precise Laser Scanning System
* Easy Production Date Management
* Automatic Warning Sign And Stop System For Wrong Products
* Real-time Production Process Monitoring Either By Mobile Or Computer.

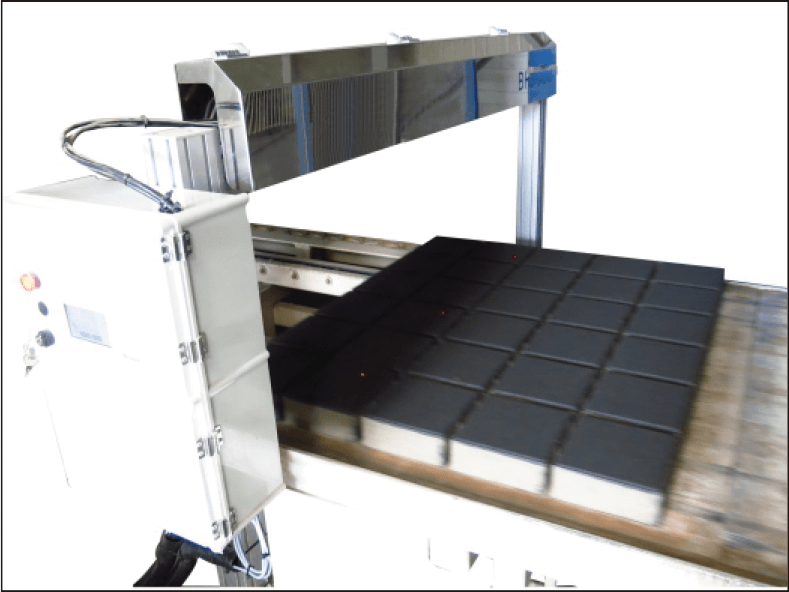

Product laser scanning device

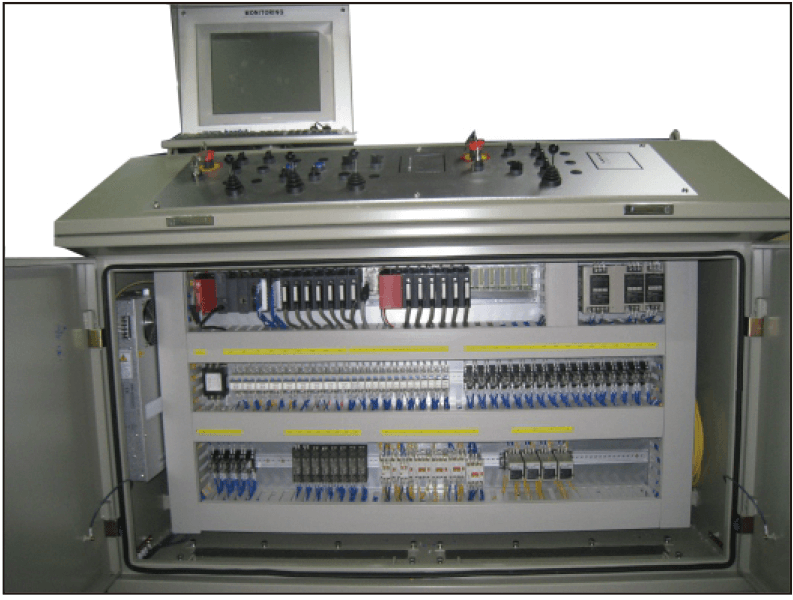

Control computer

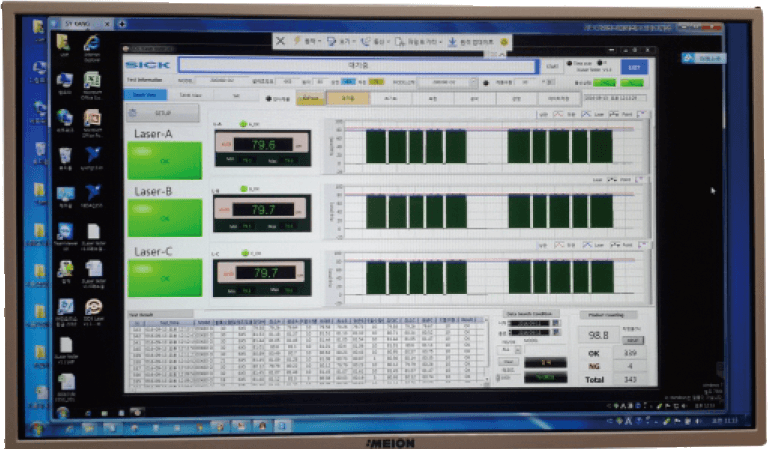

Remote control&monitoring in office

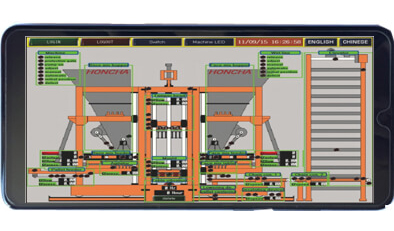

Mobile monitoring system
2.Mechanical Parts
* Main Frame Consists Of 3 Moveable Parts, Easier For Maintenance
*底架由70毫米固体钢结构制成，能够长时间强振动
* 4 Synchronized Vibration Motor, More Efficient Vibration, Frequency Controlled
* Bolts and Nuts Design For All Spare Parts, User-Friendly For Maintenance.
* Automatic& Quick Mould Change Device(Within 3 Mins)
*更高的块高度：最大500mm
German Technical Programming
Over 100 product recipes provided
Easy operation-visualized touch screen
Precise frequency vibration
Control program-High capacity inverter
Remote control for trouble-shooting

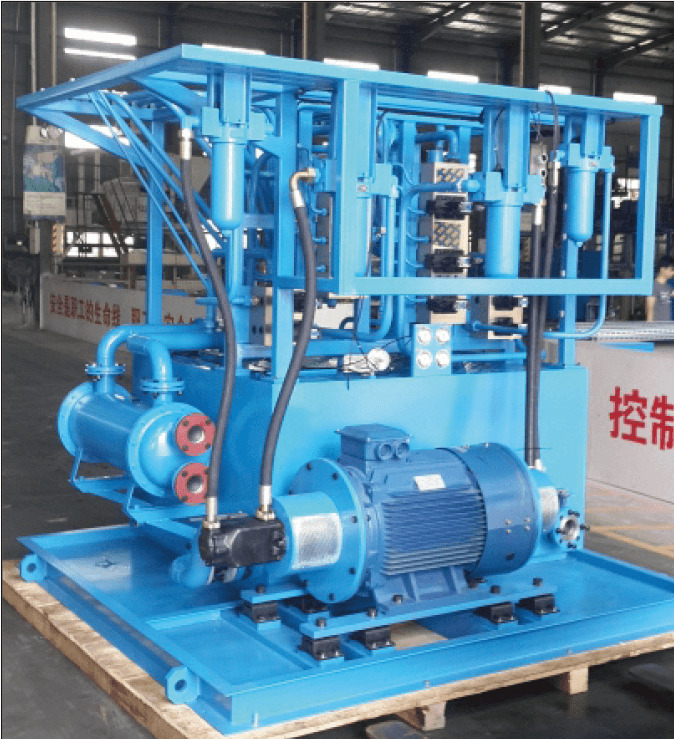

强大的液压系统
Hydraulic pump with higher capacity(75kw)
High speed control by proportional valves
- 模型细节 -

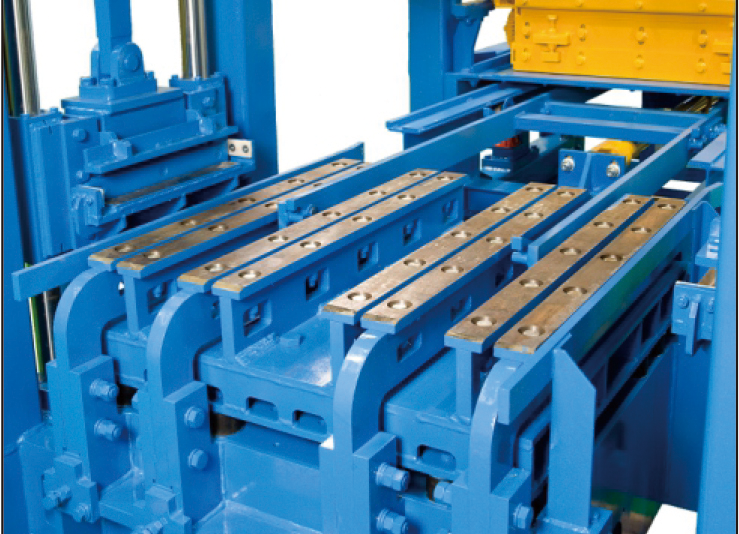

Vibration table

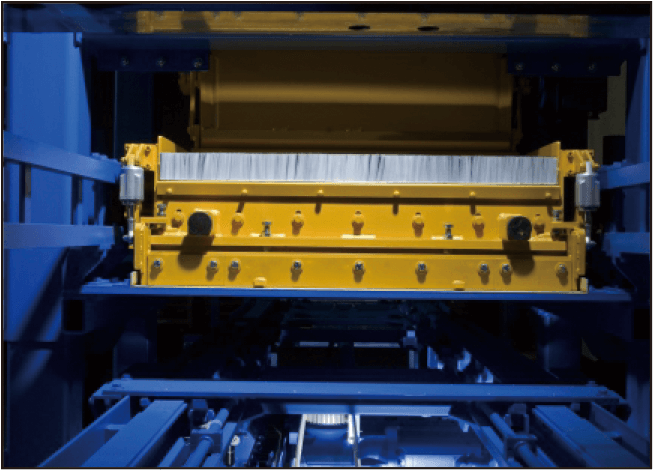

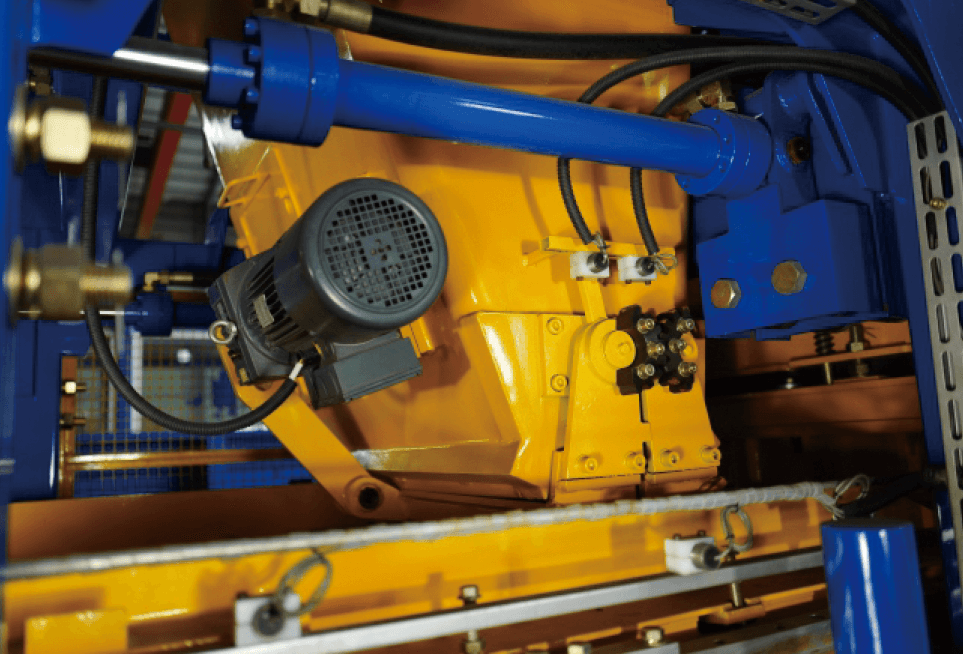

填充框

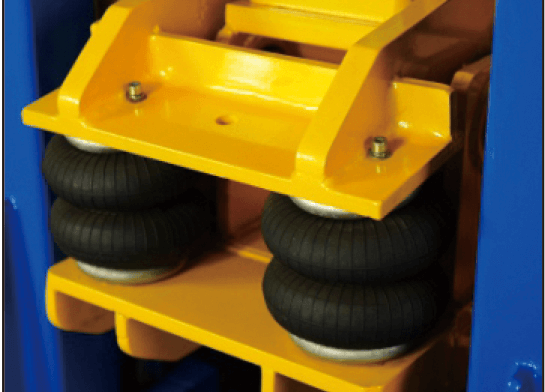

Mold clamp

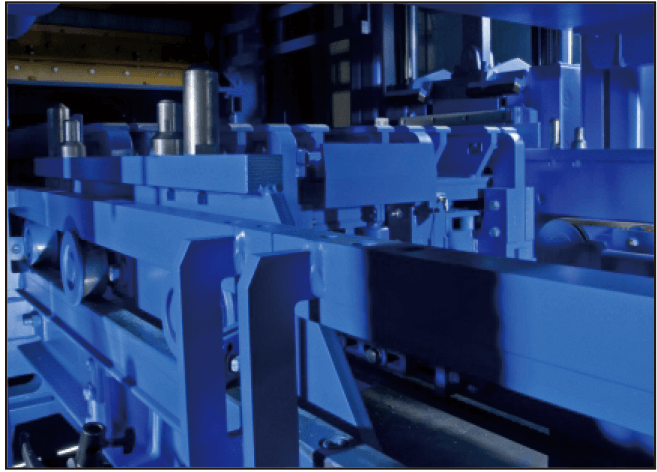

Quick mold changer
- 模型规范 -
| Hercules M Model Specification | |
| Main Dimension(L*W*H) | 4850*2150*3390mm |
| Useful Moulding Area(L*W*H) | 1280*850*40~500mm |
| Pallet Size(L*W*H) | 1400*900*40mm |
| Pressure Rating | 15Mpa |
| Vibration | 100~120KN |
| Vibration Frequency | 2900~3400r/min (adjustment) |
| Cycle Time | 15s |
| Power(total) | 90KW |
| 总重量 | 15.8t |
★For reference only
——Simple Production Line——
| ITEM | MODEL | POWER |
| 01自动堆叠器 | For Hercules M System | 7.5KW |
| 02Block Sweeper | For Hercules M System | |
| 03Block Conveying System | For Hercules M System | 2.2KW |
| 04Hercules M Block Machine | EV Hercules M System | 90KW |
| 05Dry Mix Conveyor | 8m | 2.2KW |
| 06Pallets Conveying System | For Hercules M System | 4.5KW |
| 07Bulk pallet feeder | For Hercules M System | |
| 08Cement silo | 50T | |
| 09JS1500 Enhanced Mixer | JS1500 | 48KW |
| 103-Compartments Batching Station | PL1600 III | 13KW |
| 11Screw Conveyor | 12m | 7.5KW |
| 12Cement Scale | 300KG | |
| 13Water Scale | 100公斤 | |
| AFork Lift (Optional) | 3T | |
| BFace Mix Section (Optional) | For Hercules M System |
★The above items can be reduced or added as needed. such as: cement silo(50-100T),screw conveyor, batching machine, automatic pallet feeder ,wheel loader, folk lift, air compressor.
—— Production Capacity——
| Hercules M | Prouduction Boards:1400*900 Production Area:1300*850 Stone Height:40~500mm | |||||
| Proudct | Size(mm) | Face mix | Pcs/cycle | Cycles/min | prodcution/8h | 生产立方M/8H |
| Standard Brick | 240×115×53 | X | 60 | 4 | 115,200 | 169 |
| Hollow block | 400*200*200 | X | 12 | 3.5 | 20,160 | 322 |
| Hollow block | 390×190×190 | X | 12 | 3.5 | 20,160 | 284 |
| Hollow Brick | 240×115×90 | X | 30 | 3.5 | 50,400 | 125 |
| Paver | 225×112.5×60 | X | 30 | 4 | 57,600 | 87 |
| Paver | 200 * 100*60 | X | 42 | 4 | 80,640 | 97 |
| Paver | 200 * 100*60 | O | 42 | 3.5 | 70,560 | 85 |
★For Reference Only
★Other brick sizes not mentioned may provide drawings to inquire about specific production capacity.
